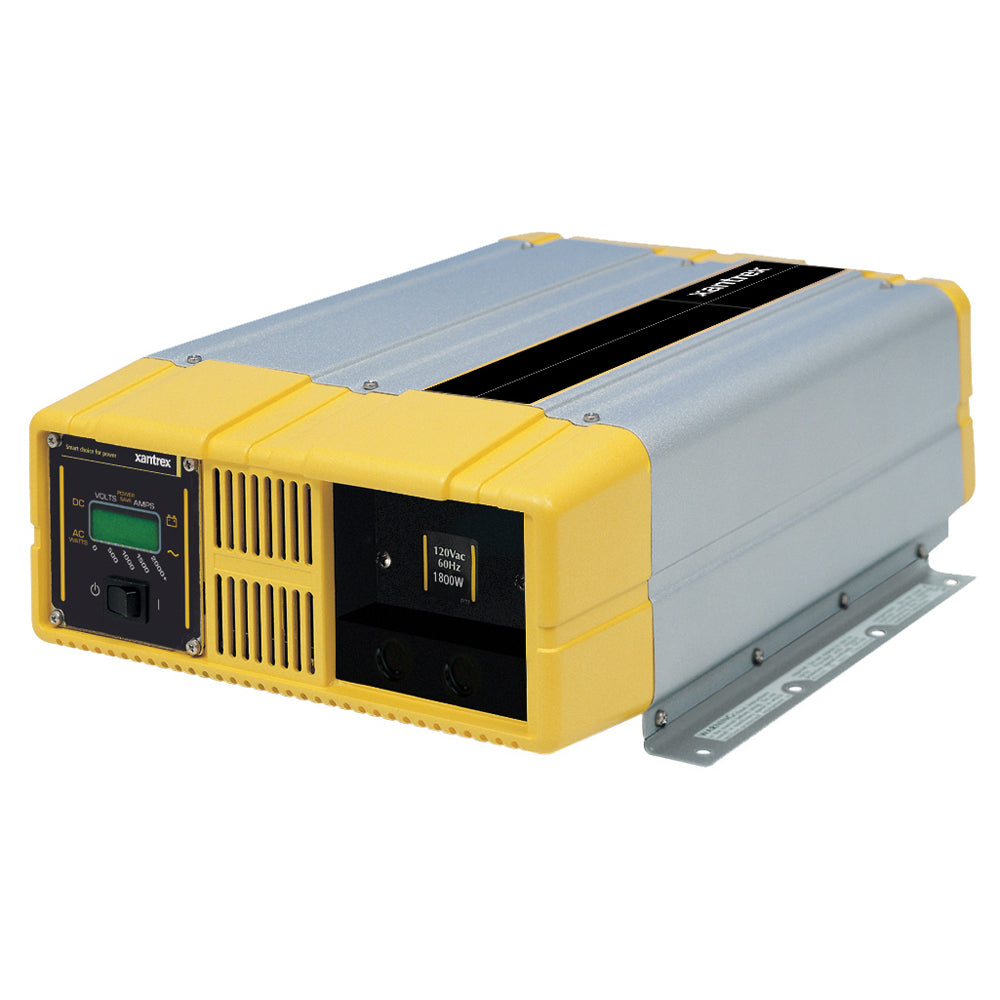

Xantrex PROsine 1800/24/120 Hard Wired Inverter [806-1851]

Power Inverters
PROsine 1800

PROsine™ Inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes PROsine™ Inverters ideal for handling sensitive loads, while also improving AC equipment performance. Designed for recreational and industrial applications, expect the best performances from televisions, audio systems, speed tools, and any other electronics where you want nothing but the most optimal performance.

Product Description
Providing 1800 watts of sine wave AC power from a DC source

Offering superior quality true sine wave output, the Prosine 1800 stand-alone power inverters are ideally suited for electrical systems that already have a quality multistage battery charger. Designed for recreational and industrial applications, their 120-volt, 60 Hz AC power output is capable of handling both heavy duty and smaller, multiple AC loads. Prosine inverters include a backlit LCD display panel, which can be mounted remotely.

Product Features:
1800W inverter (2900 watt surge capability)
True sine wave AC output (crystal controlled)
Removable LCD display can be mounted remotely for control and monitoring
Unique DC terminals offer 180-degree connections for easy installation in tight places
Powersave mode draws only 1.5 watts under no load
Two year warranty

Protection Features:
Over temperature shutdown and automatic overload protection
Over voltage and under voltage protection
Short circuit and AC backfeed protection

Options:
Available in 24 volt model
Models available with GFCI AC outlet or AC hardwire terminal strip for permanent installation into an electrical system (optional 15 A transfer switch available with hardwire option)
Remote interface kit for remote mounting of display module
Ultra-clean true sine wave power

With less than 3% total harmonic distortion, Prosine 1800 inverters deliver true sine wave output that is identical to AC power supplied by your utility. This clean output makes Prosine inverters ideal for handling sensitive loads and improves AC equipment performance. Expect trouble-free true sine wave electricity for televisions, audio systems, variable speed tools, and more.

Light and Compact

PROsine power inverters are lighter and more compact than other power inverters with similar power ratings because they use high-frequency switching technology in the power conversion process.

WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Inverter Output Voltage: 120v
• AC Connection Type: Hardwire
• DC Connection Type: Hardwire
• GFCI: Yes
• Outlet Qty: 1 Duplex GFCI
• Inverter Surge Rating: 3600w
• Inverter Input Voltage: 24v
• Waveform: True Sine Wave
• Inverter Cont. Output Wattage: 1800w
• Box Dimensions: 7"H x 13"W x 19"L WT: 18.8 lbs
• UPC: 715535618513
