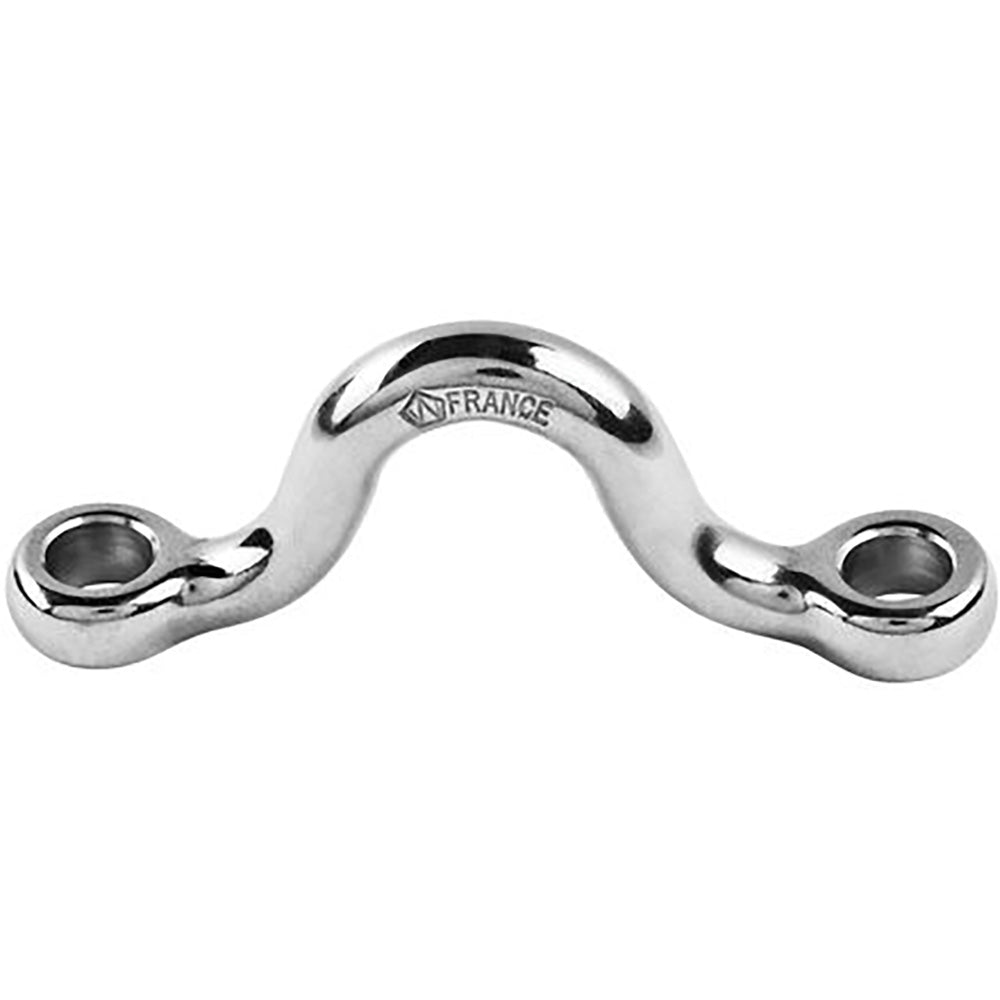

Wichard Eye strap - 10mm Diameter - 25/64" - 78mm Spacing - 3-5/64" [09205]

Eye strap - 10mm Diameter - 25/64" - 78mm Spacing - 3-5/64"

Features:

• Complete range of drop-forged saddles with high-quality stainless steel (316L)
• Outstanding strength
• The round shape reduces the wear of the components connected to them (straps, ropes...)

Applications:

• Fastening applications
• Attachment of straps & cordage

Specifications:

• Materials: 316L stainless steel grade
• Breaking load: (lb) 15430 / (kg) 7000
• Weight: (lb) 0.165 / (g) 75

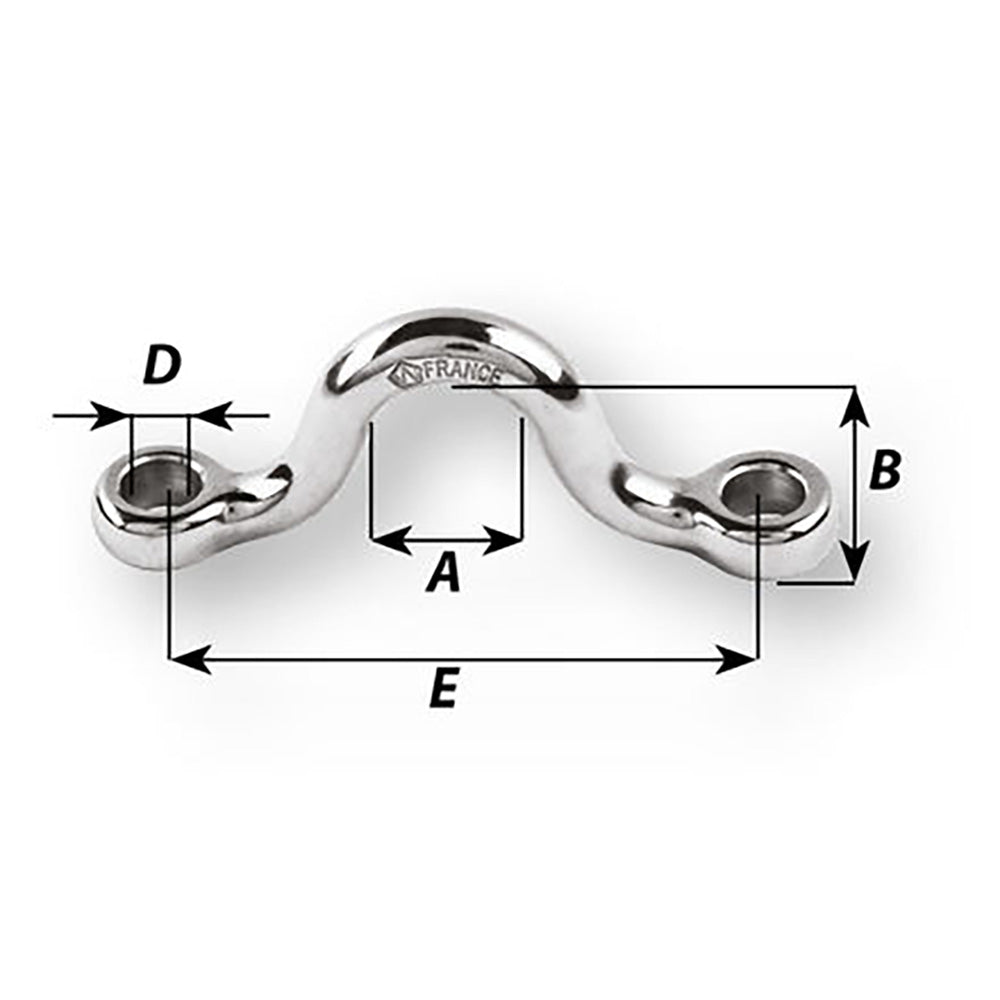

Dimensions:

• A: (inch) 25/32" / (mm) 20
• B: (inch) 1 1/32" / (mm) 26
• D diameter: (inch) 25/64" / (mm) 10
• E: (inch) 3 5/64" / (mm) 78

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
