Inverters allow users to power domestic equipment - requiring 230V/120V AC - using 'leisure' or 'automotive' batteries rated at 12V, 24V or 48V DC.
*This inverter has a GFCI Duplex Outlet.
E.Direct Communication Port
The VE.Direct port can be connected to:
A computer (VE.Direct to USB interface cable needed)
Apple and Android smartphones, tablets, MacBook, and other devices
(VE.Direct Bluetooth Smart dongle needed)
Fully Configurable:
Low battery voltage alarm trip and reset levels
Low battery voltage cut-off and restart levels
Dynamic cut-off: load-dependent cut-off level
Output voltage 210 - 245V
Frequency 50 Hz or 60 Hz
ECO mode on/off and ECO mode sense level
Monitoring:
In- and output voltage, % load, and alarms
Proven Reliability
The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverters are short-circuit proof and protected against overheating, whether due to overload or high ambient temperature.
High Start-Up Power
Needed to start loads such as power converters for LED lamps, halogen lamps, or electric tools.
ECO Mode
When in ECO mode, the inverter will switch to standby when the load decreases below a preset value (min load: 15W). Once on standby, the inverter will switch on for a short period (adjustable, default: every 2,5 seconds). If the load exceeds a preset level, the inverter will remain on.
Remote On/Off
A remote on/off switch can be connected to a two-pole connector, or between battery plus and the left-hand contact of the two-pole connector.
LED Diagnosis
Please see the manual for a description.
To Transfer the Load to Another AC Source: The Automatic Transfer Switch
For Victron’s low-power inverters, they recommend the Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.
Inverter Specifications:
Cont. Power at 25 degrees C: (1) 375VA
Cont. Power at 25 degrees C / 40 degrees C: 300 / 260W
Peak Power: 700W
Output AC Voltage / Frequency (adjustable): 230VAC or 120VAC +/- 3% 50Hz or 60Hz +/- 0,1%
Dynamic (load dependent) DC Low Shut Down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
Default Zero-Load Power in ECO Mode (default retry interval: 0,9 / 1,4 / 2,6W
ECO Mode Stop & Start Power Setting: Adjustable
Protection (2): a - f
Operating Temperature Range -40 to +65 degrees C (fan-assisted cooling)
Enclosure Specifications:
Material & Color: Steel chassis and plastic cover (blue Ral 5012)
Battery-Connection: Screw terminals
Maximum Cable Cross-Section: 10mm² / AWG8
Standard AC Outlets: 230V: Schuko (CEE 7/4), IEC-320 (male plug included); UK (BS 1363), AU/NZ (AS/NZS 3112); 120V: Nema 5-15R, GFCI
Protection Category: IP 21
Weight: 3,0kg / 6,6lbs
Dimensions (H x W x D, mm); (H x W x D, inch): 86 x 165 x 260; 3.4 x 6.5 x 10.2
Accessories:
Remote On-off: Yes
Automatic Transfer Switch: Filax
Standards:
Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / UL 458 (3)
EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
Automotive Directive ECE R10-4: 1) Nonlinear load, crest factor 3:1; 2) Protection key: a) output short circuit b) overload c) battery voltage too high d) battery voltage too low e) temperature too high f) DC ripple too high
Please contact your dealer for any returns, repairs or support issues related to this product.
Returns While we do our best to assure your order is perfect, we understand sometime things happen. If there is a problem with your purchase please call the web store support number 850-229-6100 ext 128 or email support@bluewateroutriggers.com. Our return policy lasts 30 days. If 30 days have gone by since you received your item, unfortunately we can’t offer you a refund or exchange.
To be eligible for a full refund, your item must be unused and in like new condition. It must be returned in the original packaging.
Several types of goods are exempt from being returned, such as downloadable software products and personal care items.
To complete your return, we require a receipt or proof of purchase.
Please do not send your purchase back to the manufacturer.
There are certain situations where only partial refunds are granted (if applicable) such as items with obvious signs of use. Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
Refunds (if applicable) Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund. If you are approved, then your refund will be processed, and a credit will automatically be applied to your original method of payment.
Late or missing refunds (if applicable) If you haven’t received a refund yet, first check your bank account, it may show as pending until fully processed. Next contact your bank. There is often some processing time before a refund is posted. Contact your credit card company, it may take some time before your refund is officially credited to your account. If you’ve done all of this and you still have not received your refund, please contact us at support@bluewateroutriggers.com.
Exchanges (if applicable) We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at support@bluewateroutriggers.com
Shipping To return your product, you should mail your product to: BlueWater Outriggers Returns, 514 3rd Street, Port Saint Joe, Florida, 32456
You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable unless we made an error or the product is damaged. If you receive a refund, the cost of shipping will be deducted from your refund.
Depending on where you live, the time it may take for your exchanged product to reach you, may vary.
If you are shipping an item over $100, you should consider using a trackable shipping service or purchasing shipping insurance. We can't guarantee that we will receive your returned item.

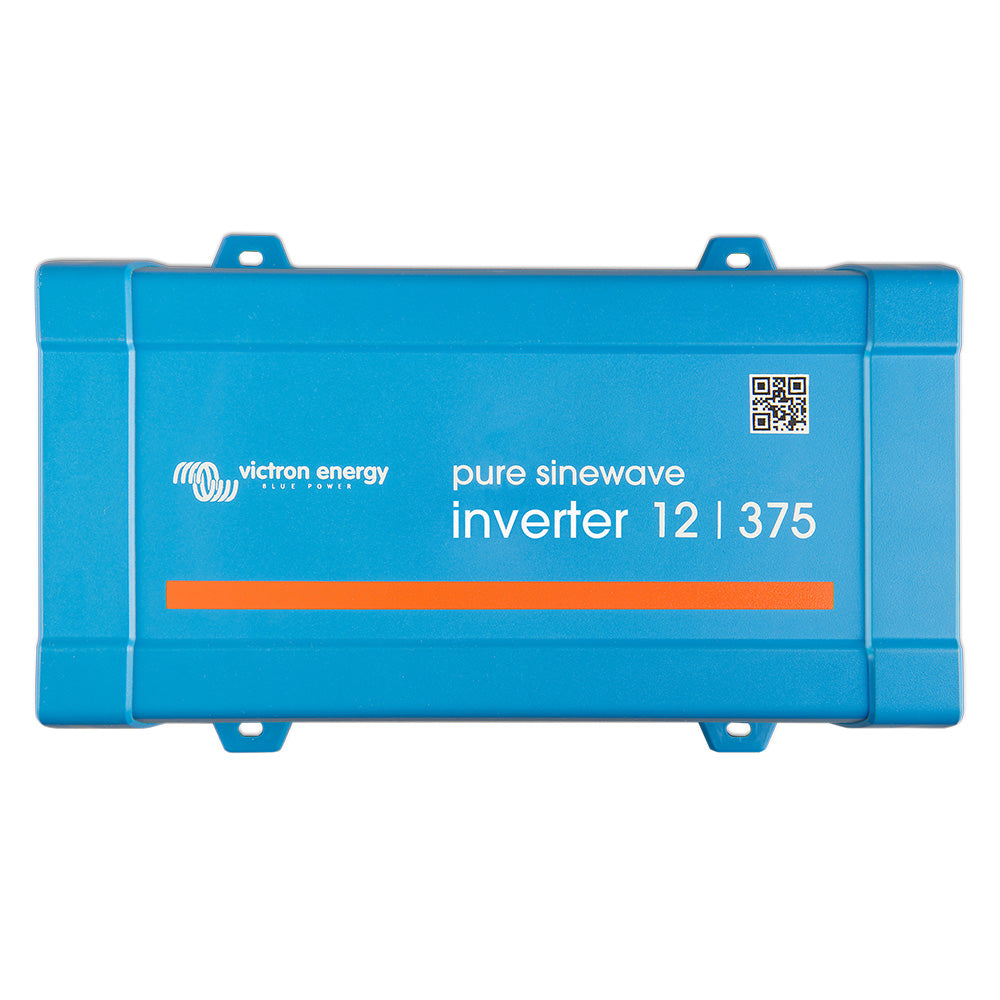

![Victron Phoenix Inverter 12/375 - 120V - VE.Direct GFCI Duplex Outlet - 300W [PIN123750510]](http://www.bluewateroutriggers.com/cdn/shop/files/103134XL.jpg?v=1764020360&width=1000)

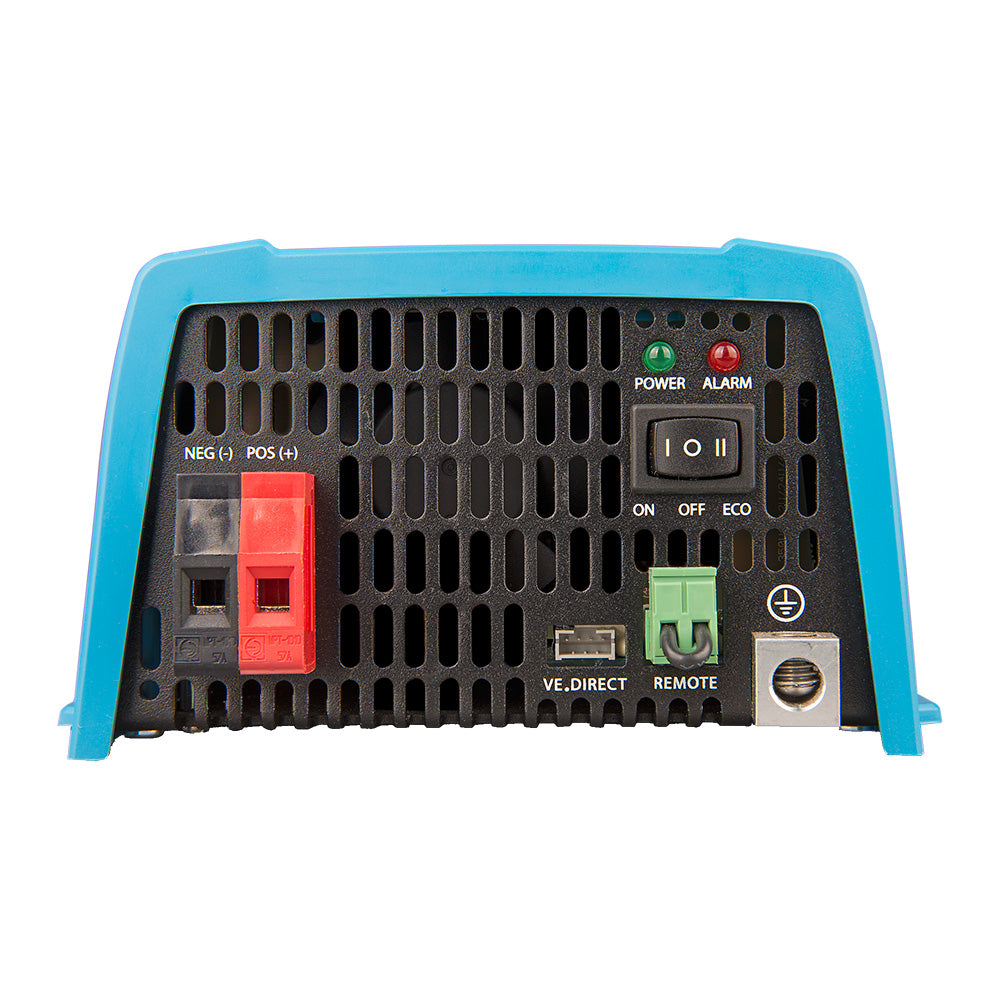

![Victron Phoenix Inverter 12/375 - 120V - VE.Direct GFCI Duplex Outlet - 300W [PIN123750510]](http://www.bluewateroutriggers.com/cdn/shop/files/103134BXL.jpg?v=1764020362&width=1000)
