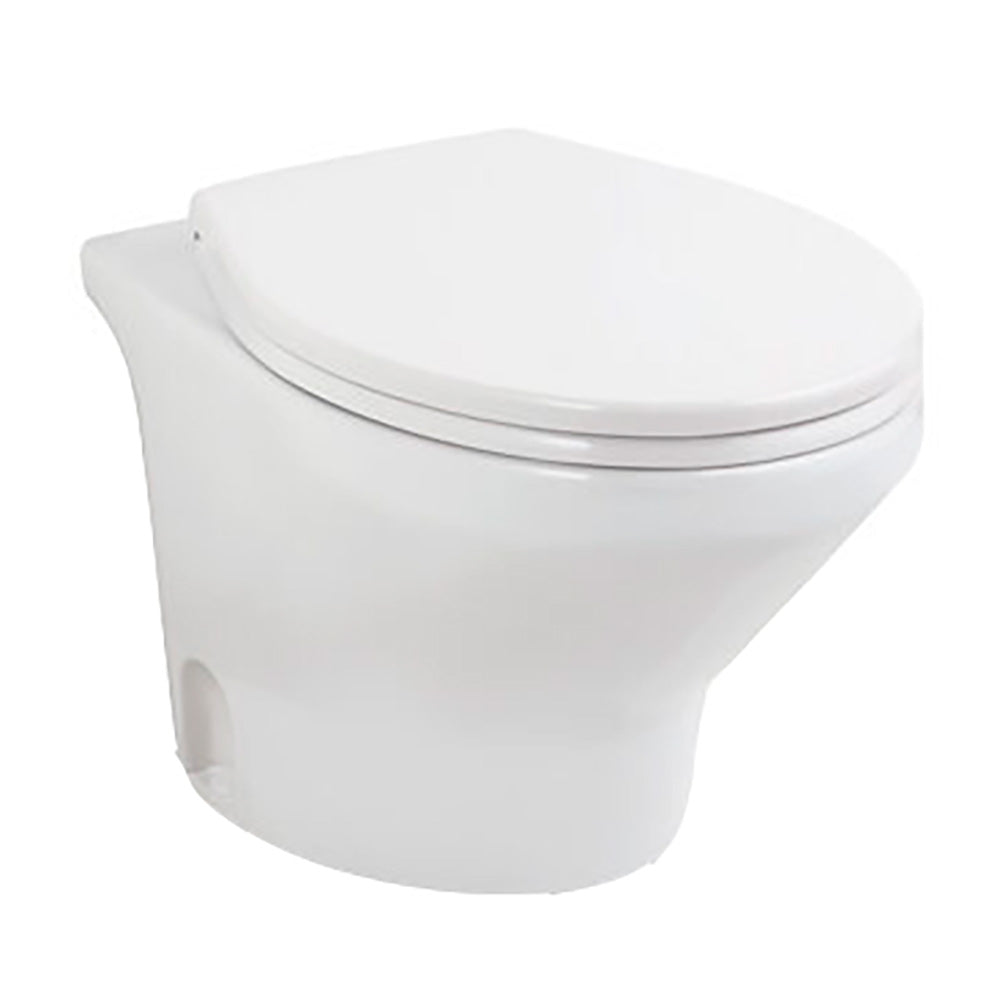

The narrow footprint and smart back of the Compass toilet give maximum space and maximum flexibility wherever it is installed on board. It can go straight to a wall or even further towards the hull thanks to the cutaway. A vertical back does not limit the Compass. This way, the visual installation remains perfect, regardless of the installation space you have. The small footprint and the hose design facilitate a very easy installation. The discharge pipes can easily be connected either below the step or surface-mounted in all directions. By having both a high and a short profile, the Compass range offers maximum flexibility on board.
The performance of the macerator pump meets all quality standards, while the technology inside the toilet has been further developed to keep the sound emission to the lowest level possible, while limiting the water and electrical consumption to minimal levels. The installation, plumbing, and wiring are easy and fast, with virtually no maintenance.
Both the Compass High and Short versions are equipped with an innovative soft closing system. A gentle finger touch to the lid activates the soft-close damper mechanism, which controls the closing speed of the cover. In addition to user convenience, a slow-closing lid keeps noise to a minimum and prevents potential damage to the toilet seat.
The soft-close damper mechanism is a design original to Tecma.
Features:
Italian ceramic
Wide range of control panels (Touch SFT panel included, others sold separately)
Silent flush
Low consumption
Technical Specifications:
Weight - 40 lbs
Water Usage - 0.5-2L/0.1-0.5 gal per flush
Color - White
Seat and Cover - Thermosetting with soft closing
Outlet Pump - MAC 4 12/24V
Inlet Device - Solenoid
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
