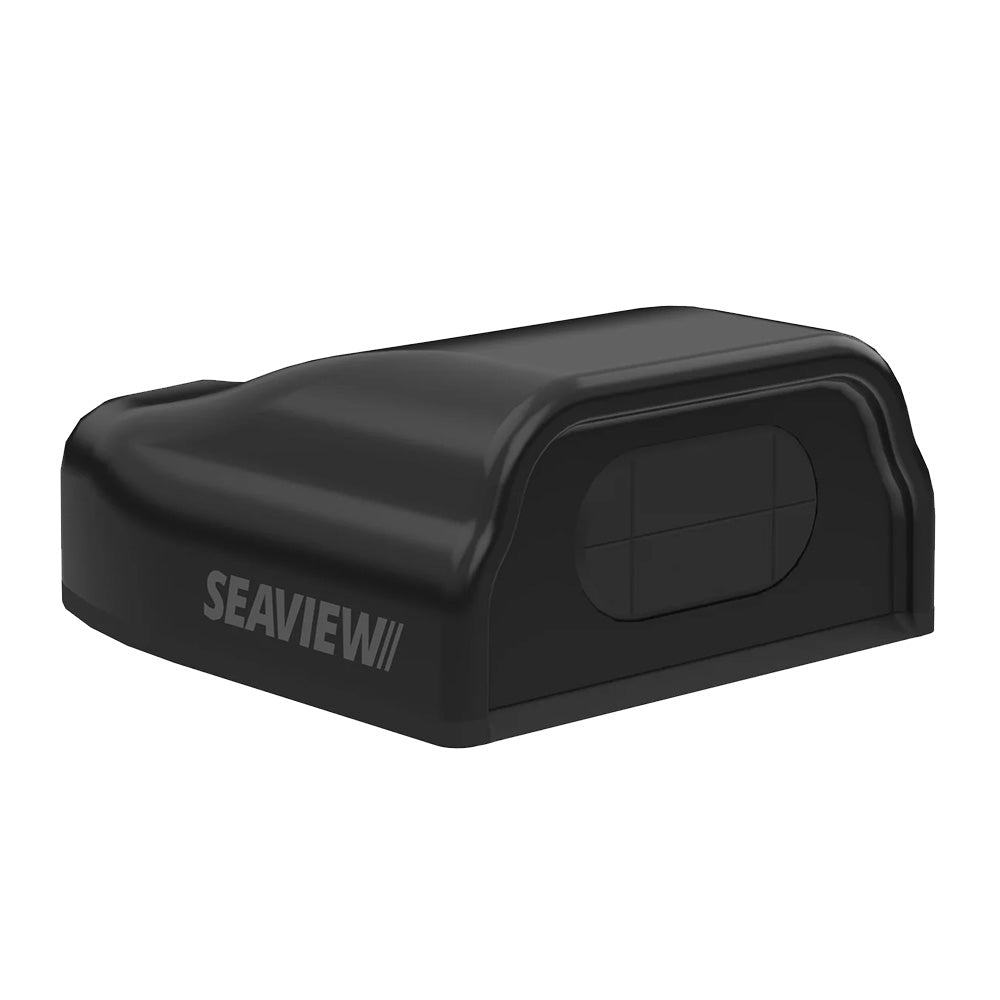

Seaview Black Plastic Horizontal Cable Seal f/Multiple Wires [CGM90]

Black Plastic Horizontal Cable Seal for Multiple Wires

The Seaview horizontal cable seal (90-degree cable seal) is a streamlined, waterproof seal that has a horizontal orientation. This cable seal fits cable diameters up to 0.53” (13.5mm). Max connector size approx. 0.375"-0.5" (9.5 mm-12.7 mm) depending on connector length and type.

It has a plastic housing (white or black) that is strong and impact-resistant, with a captive nut in the base to make it easy to assemble. The tapered rubber bung forms a watertight seal and is supplied with a drill tube allowing you to drill your own custom diameter seal. This is also supplied with a thick rubber base gasket. IPX6 / IPX8 tested and approved.

These Cable Seals will work with more than one cable as long as each cable has its own hole and there is at least .125" of rubber around each hole.

Specifications:

• Type: Deck Seal
• Box Dimensions: 2"H x 3"W x 7"L WT: 0.2 lbs
• UPC: 850073256053
