Marinco ConnectPro Charging/Trolling System Receptacle & Plug [12VCP]

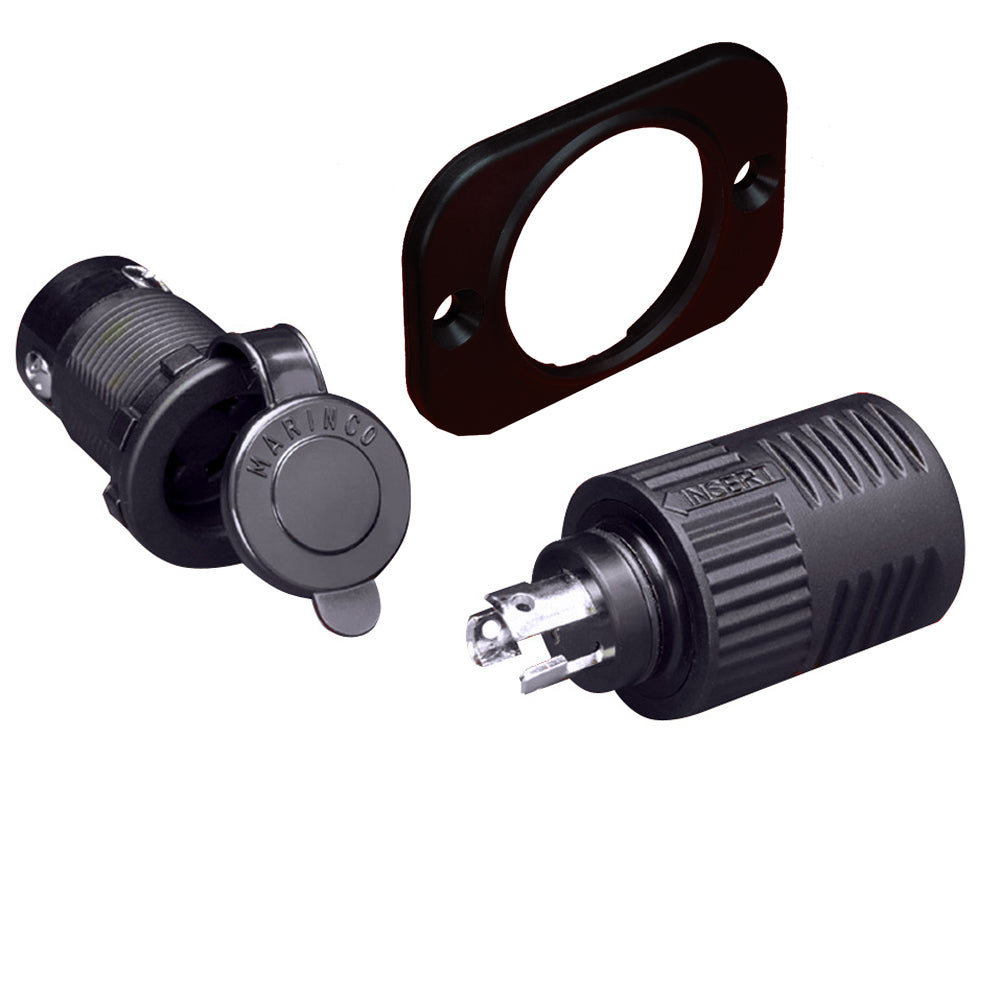

ConnectPro® Charging/Trolling System Receptacle & Plug

ConnectPro® Receptacle

• Universal design for 2 or 3-wire configuration 12, 24, 12/24, 24/36 or 36 volt systems

• Watertight sealing cap

• Corrosion resistant, plated brass electrical components

• Drain holes in receptacle keep water away from electrical components

• Perma-Lock™ screw terminals will not loosen under extreme hull vibration

• Standard 1-1/8" diameter mounting hole

• Easy to install, with supplied mounting plate for front panel installation, or locking ring for rear access installation

• Accepts 10 and 8 gauge wire

• Easily replaces other trolling motor plugs and receptacles

• O-ring seal for waterproof connections

• Weather resistant plug cover

• Corrosion resistant, plated brass electrical components

• Accepts 16 to 8 gauge wire

• Ergonomic contoured grip for easy hook-up and ground blade alignment

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Type: Misc
• Box Dimensions: 2"H x 5"W x 9"L WT: 0.35 lbs
• UPC: 093344304668
