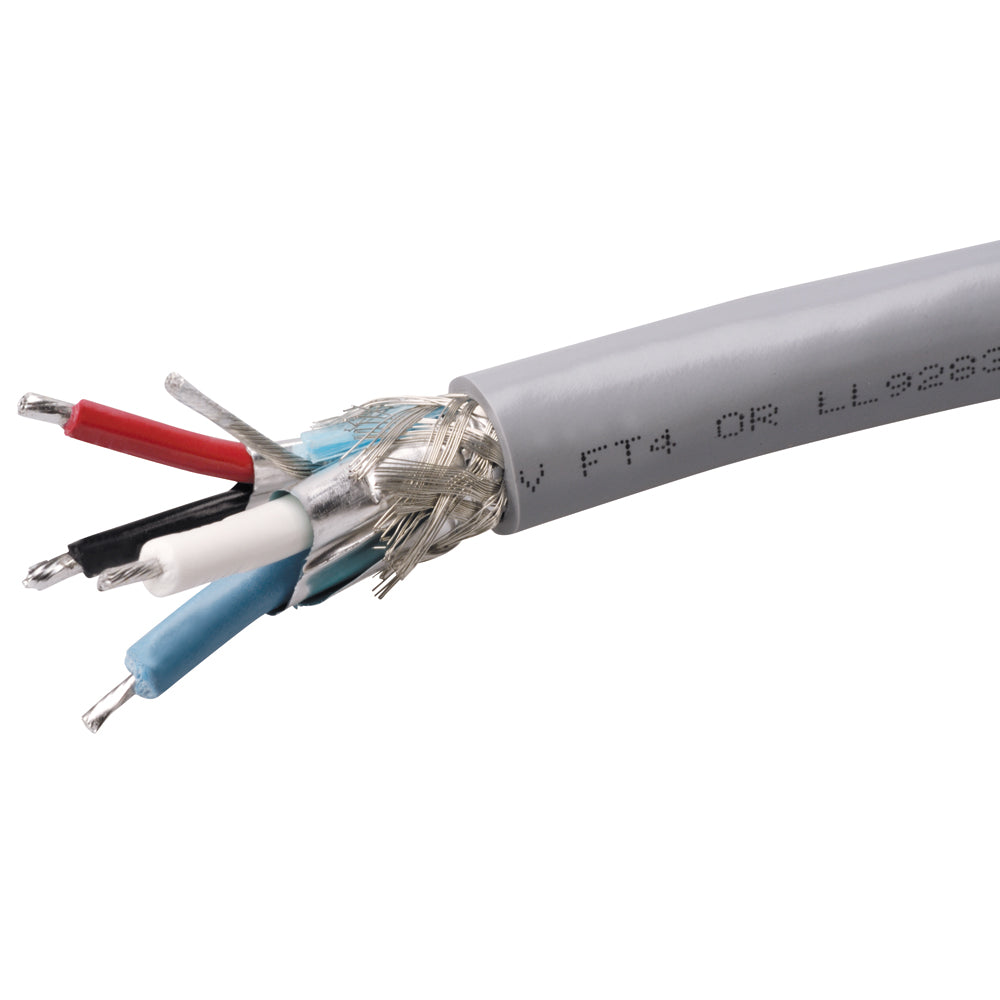

Maretron Mid Bulk Cable - 100 Meter - Gray [DG1-100C]

Roll over image to zoom in Click on image to zoom

Maretron Mid Bulk Cable - 100 Meter - Gray [DG1-100C]

Name: Maretron Mid Bulk Cable - 100 Meter - Gray [DG1-100C]
Brand: Maretron
SKU: CWR-47023
Price: 628.99 USD
Availability: OutOfStock

Save $ 71.01 USD

MaretronSKU: CWR-47023

Price:

$ 628.99 USD $ 700.00 USD

Stock:

Sold out

Quantity:

Share this product

Specifications

Overall

Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1

Insulation Material: PE (data wires), PVC (power wires)

Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire

Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair)

Power Pair

Wire: 2x16 (1.29mm) AWG

Resistance/Conductor: 4.1 Ohms/1000 ft max

Max Amperage: 14 Amps

Color Code: Red/Black

Data Pair

Wire: 2x20 (0.81mm) (AWG)

Characteristic Impedance: 120 Ohms +/- 10%

Capacitance: 10.75 pF/ft

Color Code: White/Blue

Approvals

UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V

CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4

NMEA: NMEA 2000 Approved

IEC: IEC-61162-3

Specifications:

Data Interface: NMEA 2000
Cable Length (Meters): 100m
Box Dimensions: 11"H x 12"W x 12"L WT: 25 lbs
UPC: 873804003030

California Warning

WARNING: Cancer and Reproductive Harm: https://www.p65warnings.ca.gov/products-places

Maretron Mid Bulk Cable - 100 Meter - Gray [DG1-100C]

Description

Maretron Mid Bulk Cable - 100 Meter - Gray [DG1-100C]
