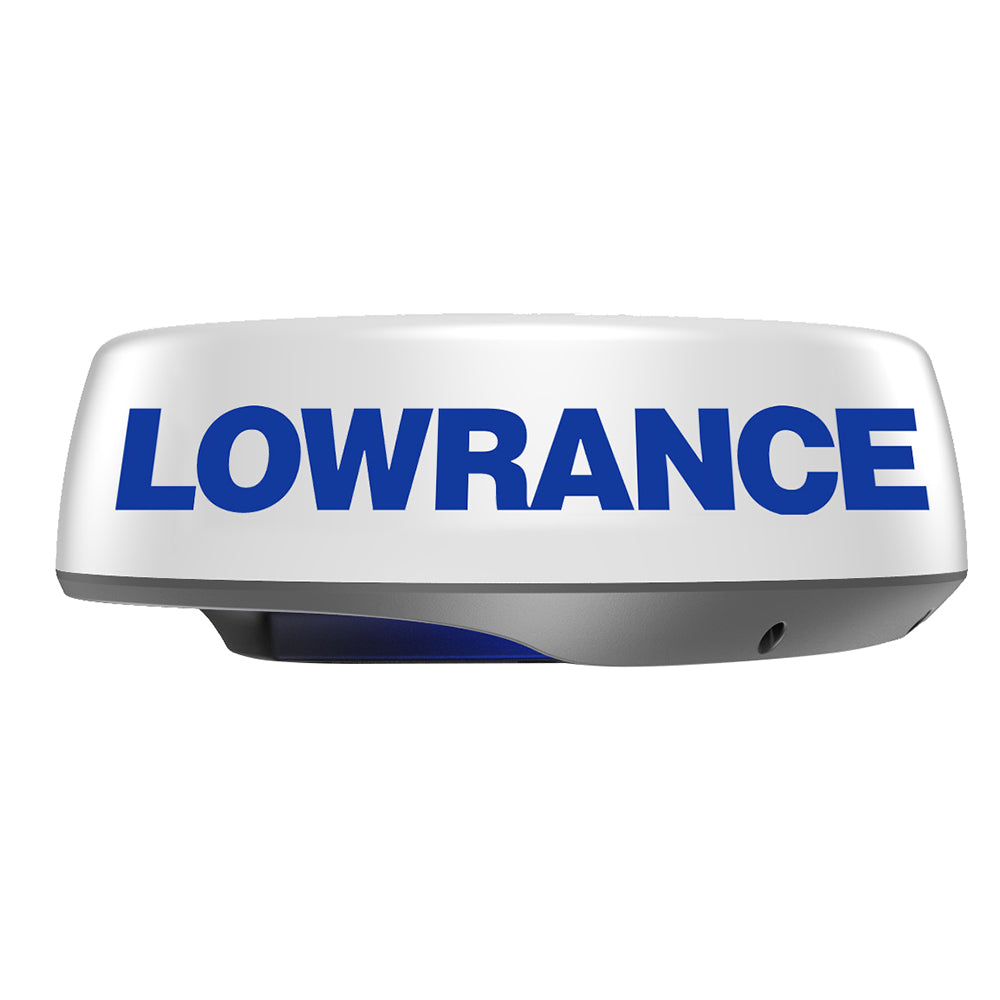

HALO24 radar offers an almost real-time view, with industry-first 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 48 nautical miles—from one compact 24-inch dome antenna.
See Near and Far with One Compact Dome
Perfect for a wide range of sailboats, fishing boats and smaller powerboats, HALO24 comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode, which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO24 radar’s pulse-compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
The Ultimate View for Collision Avoidance
HALO24 radar introduces industry-first 60 RPM rotation at ranges up to 2 nautical miles, delivering a full 360-degree sweep every single second. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance. Whether you’re navigating through crowded waterways or contending with poor visibility, Halo radar cuts through the clutter to give you a clear and current picture of your surroundings
VelocityTrack™ Doppler Technology Built-In
VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards you or moving away. Using the Doppler effect, this feature automatically checks every target seen by your radar; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time. Simple color coding highlights potential hazards, improving your situational awareness and further reducing your risk of collision.
Key Features:
48 nm range from a compact 24" dome
Advanced pulse compression technology with beam sharpening
Simultaneous Dual Range operation sees both near and far
Ultra-fast 60 RPM operation at ranges up to 2nm
VelocityTrack™ Doppler technology for collision avoidance
Easy operation with harbour, offshore, weather, and bird modes
MARPA target tracking (up to 10 targets, 20 in dual range).
Ready instantly from standby
Lightweight, low profile dome design, with integrated LED lights
5m Radar Cable
Specifications:
Environmental
Operating Temperature: -25° to +55°C (-13° to +130°F)
Side lobe level (Tx and Rx antenna): Below -18 dB (within ±10°);Below -24 dB (outside ±10°)
Noise figure: Less than 5 dB nominal
Communications/Cabling
Protocol: Ethernet 100 Base T
Maximum inter connecting cable length: 30M (98.5') – available as option, use NEP-2 for longer cable runs
Specifications:
Range - Max (Miles): 48nm
Array Size (Inches): 24"
Box Dimensions: 11"H x 28"W x 30"L WT: 26.75 lbs
UPC: 9420024173831
