With surface-to-surface 180° views, meet the world’s clearest and most complete live sonar.
Best-In-Class Resolution
Our live sonar resolution was already best in class. Well, now it’s even sharper. The new XL transducer delivers the clearest possible view of fish and bait movement in real time.
The Largest Field of Vision
Leave nothing unseen with a full 180° live view across Forward, Down, and Scout views – all from a single transducer. Surface-to-surface views utilize the whole display, so you never miss a thing, from the moment your lure drops to the bite itself.
Quick-Switch Views
Why waste time adjusting your gear? A redesigned transducer lets you switch instantly between Forward and Down views from your display. No need to go fishing for your transducer. Just select your preferred view, and fish.
A new bracket – which can be shaft- or motor-mounted* – also makes it quicker and easier to switch into Scout Mode. Once you’re there, quick-reference markers help you choose the right angle for deep or shallow water. With simple tricks like these, it makes it easier to switch between sonar views.
*RECON™ Trolling Motors only, sold separately
Easy Upgrade
ActiveTarget 2 XL is a one-and-done upgrade, with all views available from a single transducer. Anglers can even use their existing ActiveTarget 2 sonar module, reducing the amount of gear required. Simply mount the new XL transducer and cast.
Double-Up with Two XLs
Combining two systems unlocks an industry-first 360° live Scout view around your entire boat*. This truly comprehensive live view means you can select the perfect place to cast without even having to move your boat. Using multiple transducers also allows anglers to run Forward/Down or 180 and Scout views simultaneously, with no need to lift your trolling motor to switch between views.
*HDS® Pro only
Features:
Best-in-class resolution
Surface-to-surface 180° live view
360° live view in Scout (Requires dual systems. HDS® Pro only)
180 (Front-to-back), Forward XL, Down XL, and Scout XL Views
Switch between Forward XL and Down XL views on your display.
Improved switching to Scout views
Quick-reference markers for deep and shallow water (Scout Mode)
Shaft mount or Motor-mount* (*exclusive to RECON™)
Compatible with the existing ActiveTarget 2 sonar module
Module Storage Temperature - -30°C to 70°C (-22°F to 158°F)
Module Operating Temperature - -15°C to 55°C (5°F to 131°F)
Module IP Rating - IP67
Power Supply - 12/24VDC
Operating Voltage - 10.8VDC - 31.2VDC
Current Drain (Max) - 1.5A to 13.8V
Fuse Rating - 5A
Transducer Storage Temperature - -22°F to 158°F (-30°C to 70°C)
Transducer Operating Temperature - 32°F to 95°F (0°C to 35°C)
Transducer Dimensions - 7.08" x 4.47" x 2.68"
Cable Length - 25'
Estimate shipping
Refund Policy
Returns While we do our best to assure your order is perfect, we understand sometime things happen. If there is a problem with your purchase please call the web store support number 850-229-6100 ext 128 or email support@bluewateroutriggers.com. Our return policy lasts 30 days. If 30 days have gone by since you received your item, unfortunately we can’t offer you a refund or exchange.
To be eligible for a full refund, your item must be unused and in like new condition. It must be returned in the original packaging.
Several types of goods are exempt from being returned, such as downloadable software products and personal care items.
To complete your return, we require a receipt or proof of purchase.
Please do not send your purchase back to the manufacturer.
There are certain situations where only partial refunds are granted (if applicable) such as items with obvious signs of use. Any item not in its original condition, is damaged or missing parts for reasons not due to our error.
Refunds (if applicable) Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund. If you are approved, then your refund will be processed, and a credit will automatically be applied to your original method of payment.
Late or missing refunds (if applicable) If you haven’t received a refund yet, first check your bank account, it may show as pending until fully processed. Next contact your bank. There is often some processing time before a refund is posted. Contact your credit card company, it may take some time before your refund is officially credited to your account. If you’ve done all of this and you still have not received your refund, please contact us at support@bluewateroutriggers.com.
Exchanges (if applicable) We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at support@bluewateroutriggers.com
Shipping To return your product, you should mail your product to: BlueWater Outriggers Returns, 514 3rd Street, Port Saint Joe, Florida, 32456
You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable unless we made an error or the product is damaged. If you receive a refund, the cost of shipping will be deducted from your refund.
Depending on where you live, the time it may take for your exchanged product to reach you, may vary.
If you are shipping an item over $100, you should consider using a trackable shipping service or purchasing shipping insurance. We can't guarantee that we will receive your returned item.

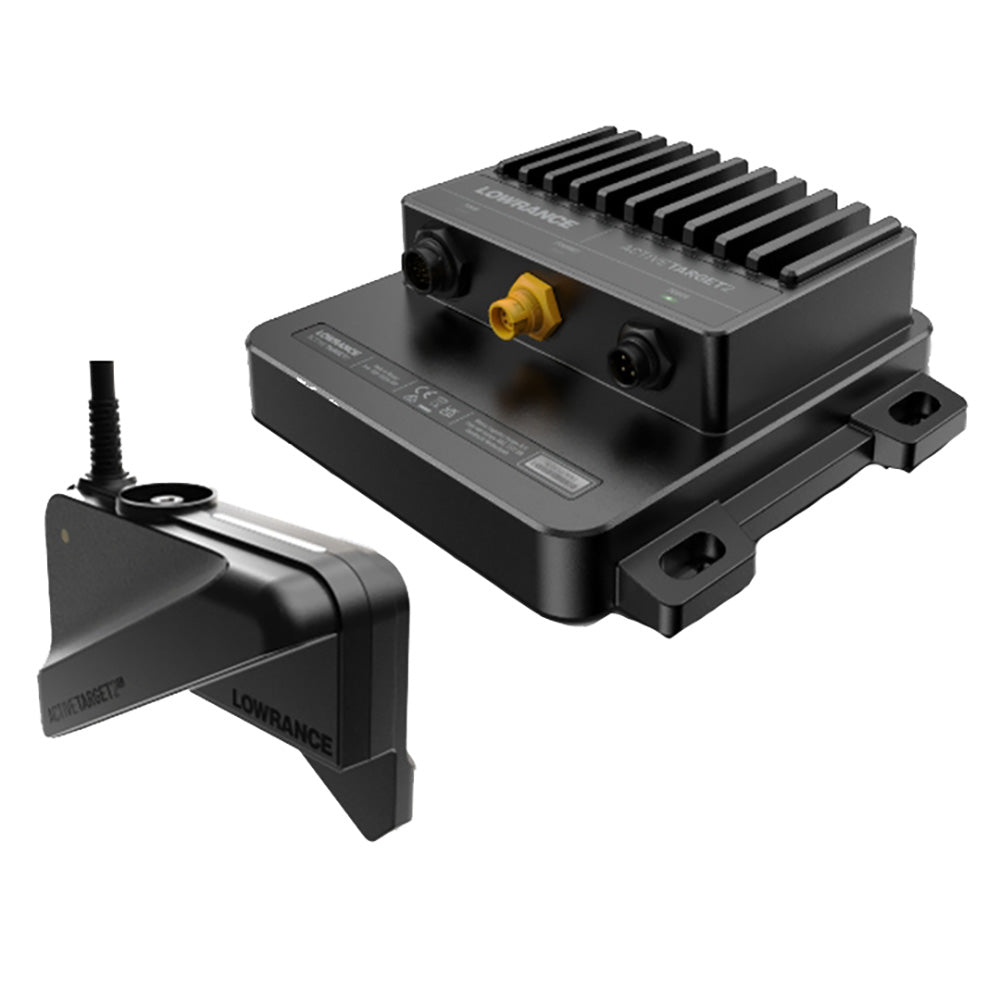

![Lowrance ActiveTarget 2 XL Sonar w/Transducer [000-16488-001]](http://www.bluewateroutriggers.com/cdn/shop/files/111981XL.jpg?v=1768481395&width=1000)
