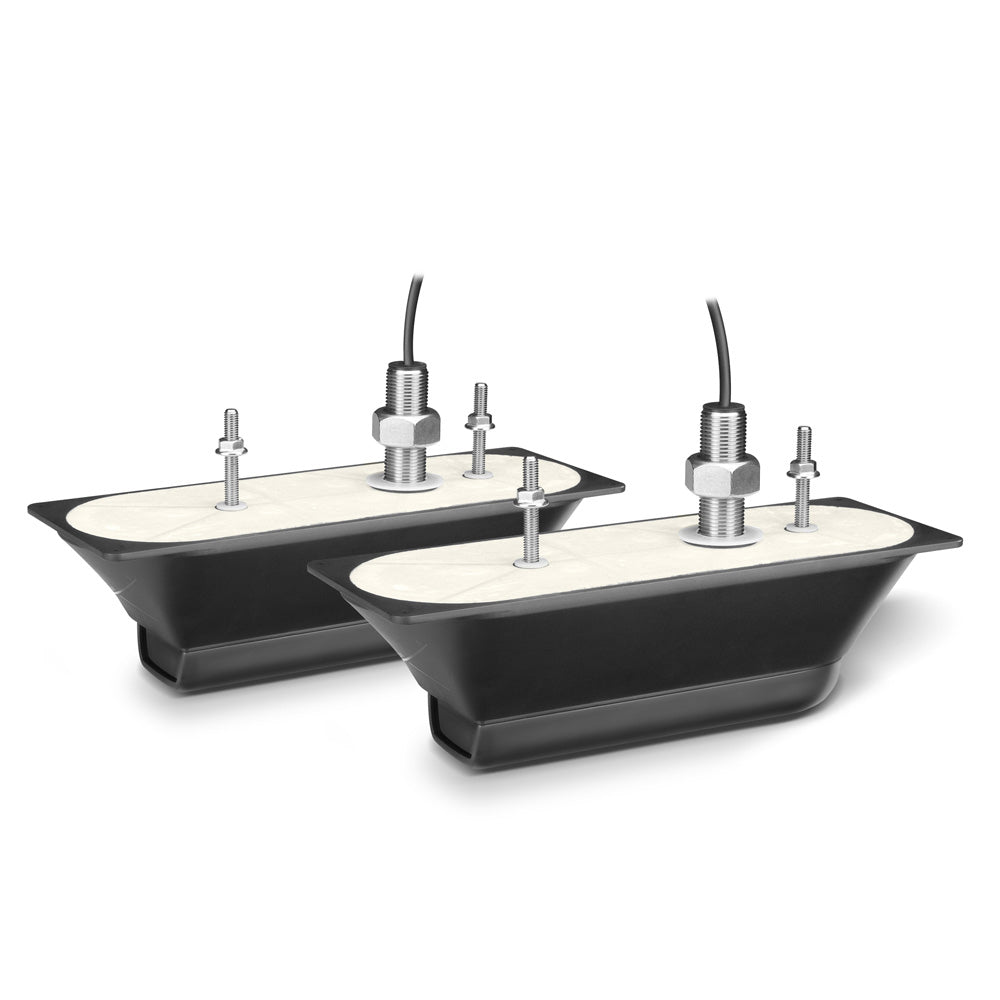

GT51M-THP - Stainless Steel Thru-Hull Pair DownVü/SideVü 500 W
(CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz)
Transducers with Temp (12-Pin)
This thru-hull transducer pair provides ultra-clear sonar pictures of
objects, structure and fish that pass below your boat. These traditional
CHIRP sonar and CHIRP DownVü/SideVü transducers are optimized for
depth performance and rough conditions.
The CHIRP DownVü/ SideVü elements have a power rating of 500 W per
element (1,500 W total) and operating frequencies of 260/455 kHz. The
traditional CHIRP sonar has a power rating of 600 W and operating
frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in
fast-response temperature sensor. For hull deadrises less than 25 degrees.
GT51M-THP includes a 12-pin port/starboard transducers with stainless steel
stems, fairing blocks, Y-cable, bushings, mounting hardware and installation
instructions. Follow the instructions carefully to avoid damaging your boat.
- GPSMAP® 7607xsv
- GPSMAP® 7608xsv
- GPSMAP® 7610xsv
- GPSMAP® 7612xsv
- GSD™ 25 Premium Sonar Module
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Imagining: Standard/Down/Side
- Chirp: Medium/Non Traditional
- Cable Length (Feet): 5' + 30' y-extension
- Temperature: Yes
- Speed Included: No
- Pins: 12
- Mounting Style: Thru-Hull
- Box Dimensions: 6"H x 13"W x 17"L WT: 15 lbs
- UPC: 753759152932
Owner's Manual (pdf)
