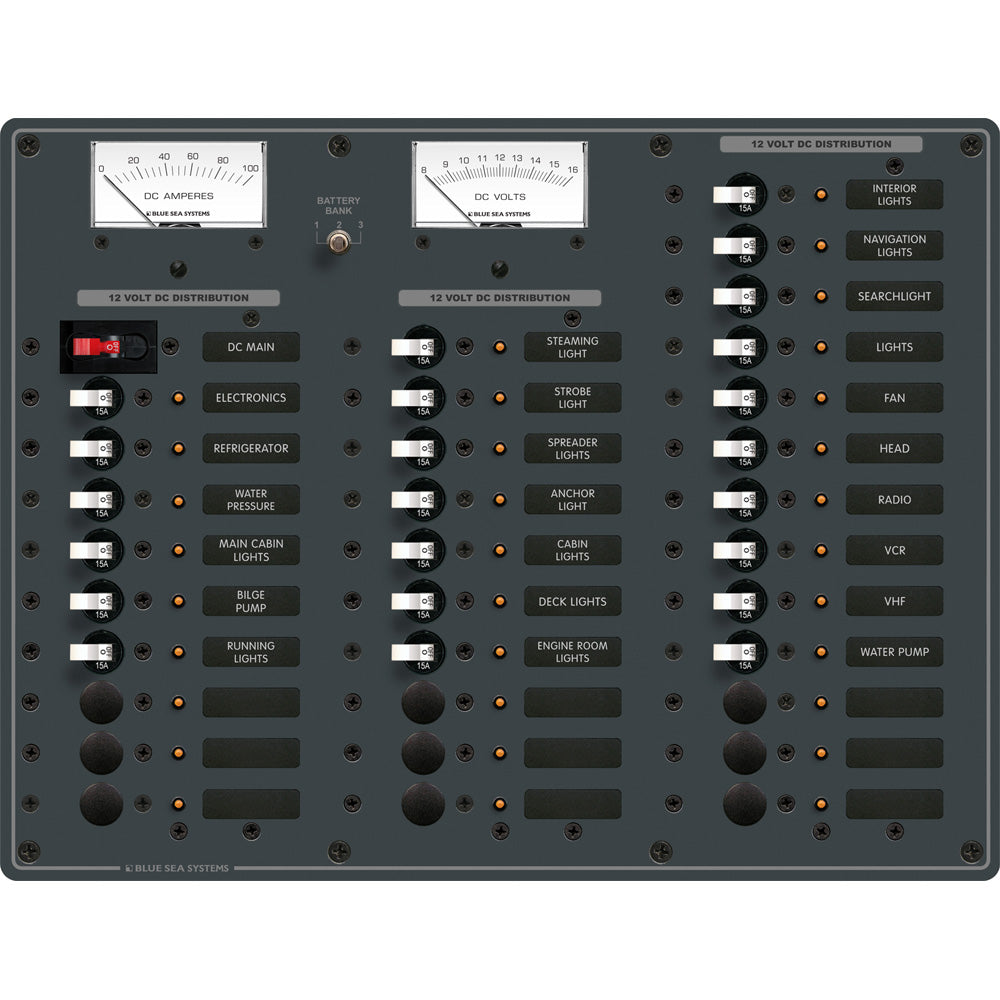

Blue Sea 8382 DC Main + 35 Positions [8382]

Main + 35 Positions

(26) 15A Single Pole Circuit Breakers

(1) 100A C-Series Main Circuit Breaker

(1) 8248 DC Digital Multimeter w/ Alarm

White Switches

Features:

• All positive, negative and grounding buses installed, fully pre-wired

• Panels with meters include toggle switch for mounting up to 3 battery banks

• All panels with analog meters are owner upgradable to 24 Volts with 8240 or 8243 (18-32V DC meters)

• All circuit label positions are backlit on standard panels - No kit required

• "ON" indicating LEDs installed in all circuit positions

• MIL-C-5541C or equivalent immersion undercoating for lifetime corrosion resistance

• Two-part polyurethane slate gray finish

• Heavy 1/8" aluminum 5052 alloy

• Industry standard height and width

• Countersunk mounting holes throughout

• Detailed installation instructions and cutout template included

• Includes set of 30 common Large Format Panel Labels

• Over 500 individual labels available

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Max Breaker Quantity: 35
• AC/DC: DC
• Voltage: 12/24v
• Box Dimensions: 7"H x 15"W x 22"L WT: 11.1 lbs
• UPC: 632085083823

Quick Guide (pdf)
Owner's Manual (pdf)
Brochure (pdf)
