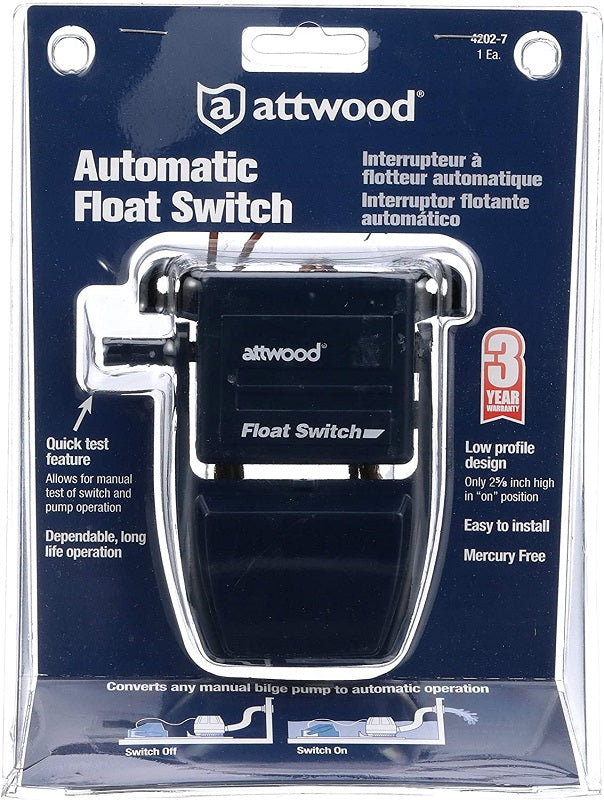

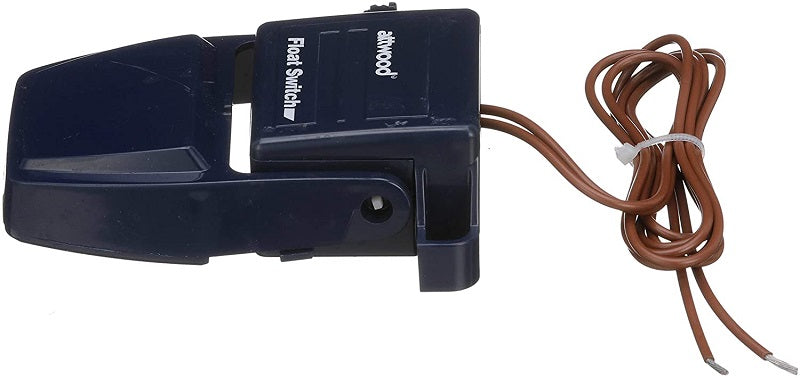

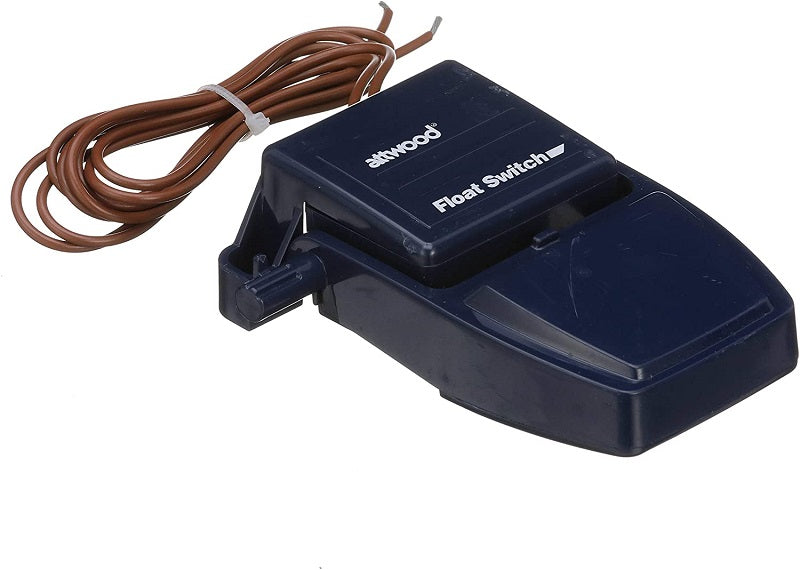

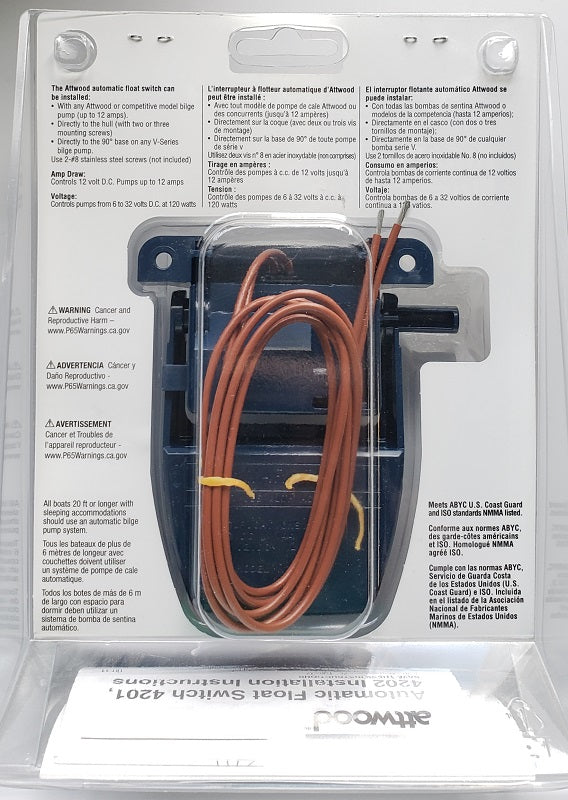

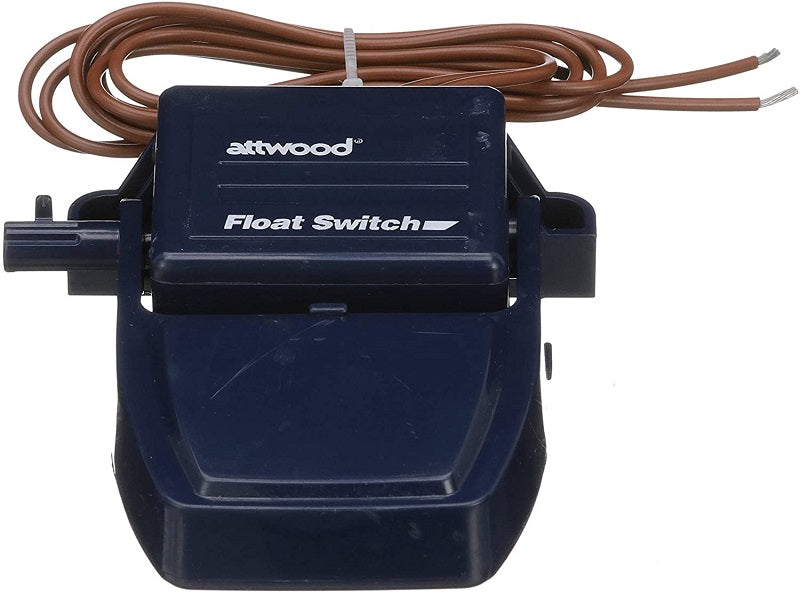

Attwood Automatic Float Switch 4202-7
This Attwood Float Switch can convert a manual bilge pump into one that is controlled fully automatically by this responsive and efficient switch. This switch features a compact, low-profile design that mounts on any surface from horizontal up to a 24-degree angle. It incorporates a reliable mechanical switch that actuates the pump motor at 2 inches water level. The wire leads do not flex or hinge with the float, as they do on some competitive models, and the integral cover dampens bilge sloshing to reduce pump cycling and prevent debris interference. The sealed switch mechanism resists moisture, fume-ignition, and electrical shock. It is 12- and 24-volt CE rated and has a 36-inch wire connection. The maximum amp draw is 12 amps (at 12-volt DC) or 6 amps (at 24-volt DC). This switch measures 4 ¼ inches L x 3 7/8 inches W x 1 3/8 inches H. It contains no mercury, which is listed as a health hazard and “Persistent Toxic Substance” in over 26 states. Marine ignition protected and RoHS compliant. Attwood Corporation has been an award-winning leader in engineering, testing, and manufacturing the highest quality marine products for over 100 years. We deliver safe and reliable lighting, fuel systems, water systems, seating & pedestals, swim ladders, custom upholstery, and general marine accessories that are easy to install and meet regulatory compliance.
