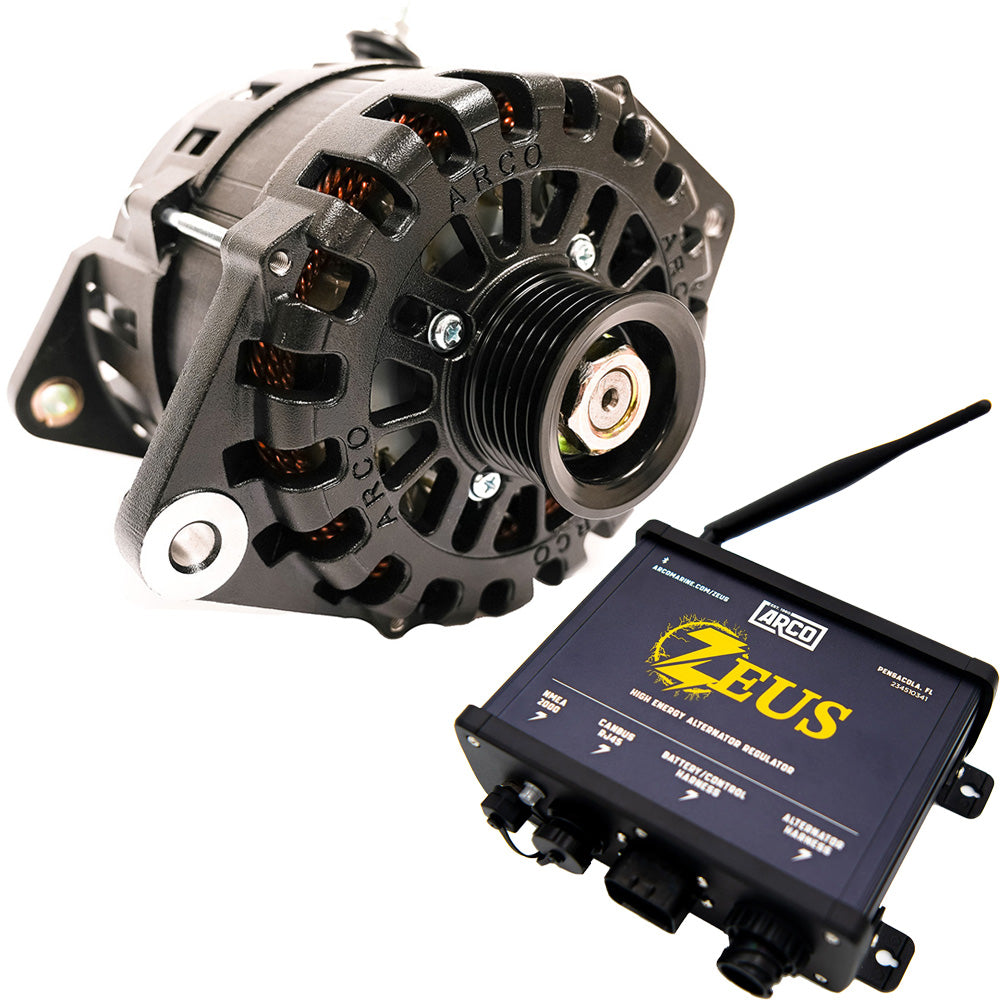

Zeus A275L 1"-2" Single Foot Alternator with Regulator & Zeus High-Energy Alternator Regulator
Zeus A275L 1"-2" Single Foot Alternator with Regulator
The highest power output alternator in its size/class.
Features:
Engineered for High Energy Production.
Suitable for Marine, RV, Military, and Commercial applications.
Rapidly charges large battery banks.
Coolest operating temperatures for increased performance.
Runs 8 - 20% cooler than incumbent alternators due to heat-shedding coatings, Rectifier located on housing exterior, Dual cooling fans, and OEM Components.
It is optimized for performance at idle speeds.
Reduces the need for a generator by creating additional power with your engine.
Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.
Use an ARCO Zeus Bluetooth alternator regulator or lithium battery charging for maximum performance.
SAE J1171 Certified.
Made in the U.S.A.
Technical Specifications:
Voltage - 12V
Field Type - P
Rotor Poles - 16
Stator Size - 138mm
Frame Size - Large
Weight - 14.9 lbs/6.7 kg
Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
Output Voltage - 14.1v (Default)
Finish - (Black) Cerakote or E-coating
Cut-In RPM - 1,061 Alternator RPM
Maximum Alt RPM - 19,000
Battery Post - M8 Thread Post, Side Mount
Standard Pulley - 49K6 (6-groove, 49mm)
Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
Max Continuous Operating Temperature - 110°C / 230°F
Mounting Application:
Replaces most domestic styles using a single 1” or 2” mounting foot (e.g., Motorola, Prestolite)
Zeus High-Energy Alternator Regulator
ARCO’s Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information will enable you to regulate your system and optimize your battery charge and alternator output, resulting in a safer experience while protecting your energy system investment.
Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.
Through the ARCO Zeus application, you are in good hands. Your data is automatically logged and can be shared with your technician to troubleshoot your system remotely. You can even import your remote technician’s configurations.
Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.
Zeus also takes into consideration the power of your engine and allows you to configure the alternator’s power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with the press of a button, whereby it focuses the alternator’s performance on the creation of energy to replenish your battery bank quickly.
Consistent with Zeus’ ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.
Features:
Secure Bluetooth connection
Harnesses, Thermistors, and NMEA 2000 kit included
Monitors the state of charge
Can turn your engine into a dedicated generator with generator mode
Pre-set battery libraries
Data logging and sharing
CAN bus and NMEA 2000-integrated networks
Compatible with all voltage systems (12- 48V)
IP66 & IP67 rated
2-Year warranty
Technical Specifications:
Enclosure dimensions without antenna - 8.2" x 5.9" x 2.4"
Enclosure dimensions with antenna - 8.2" x 7.5" x 2.4"
Weight - 1.7 lbs
In the Box:
Zeus high-energy alternator regulator
Battery wiring harness
Alternator wiring harness
2 thermistors
