Angler's Lil Mate Cart 600
These carts do not qualify for Free Shipping.
Ships UPS Ground or In Store Pickup
Call 850-229-1100 ext. 212 for more info.

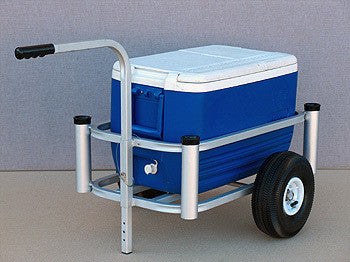

This small cart is light weight and easy to handle.
- 4 Rod-Holders
- 54 Quart Cooler Capacity
- 10" Pneumatic Rubber Tires
- Satin Chrome Finish
- Total Weight 13 lbs. Dimensions:
- inside frame 7"X14.5"X26.5"
- outside frame 9"X18"X28"
- outside frame 15"X24"X29" (with wheels mounted/handle removed)
1) Remove all components from box and check off parts list
2) Turn cart upside down and lay axle onto frame.
3) Align Axle with holes in frame and center equal distance from side to side
4) Place U-bolts into holes and add washers and nuts
5) Use 7/16" nut driver or other tool to tighten(Don't overtien)
6) Place wheels onto axle(air stem out) and add 5/8" washers and circle ring to each side
7) Turn cart over and add handle and lockin D-ring pin
8) Wash your cart after each trip to the beach
Very pleased with this cart. It fits in the back gate of a Jeep without unzipping the window, should fit into any car trunk. Probably the smallest/lightest functional surf cart. Rolls in sand better than expected.
