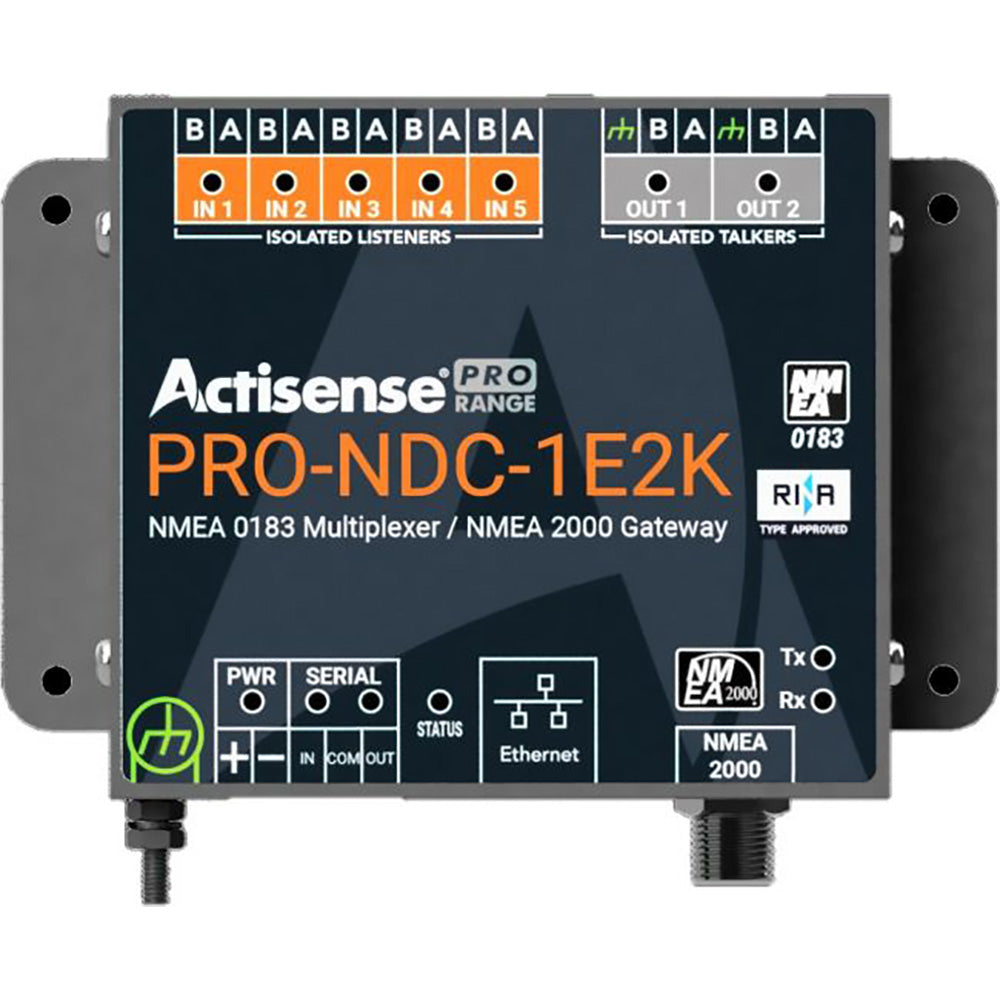

Actisense Pro NMEA 0183 Multiplexer/NMEA 2000 Gateway [PRO-NDC-1E2K]

Pro NMEA 0183 Multiplexer/NMEA 2000 Gateway

Interconnectivity, reimagined!

The PRO-NDC-1E2K is much more than an NMEA 0183 Multiplexer…

Rugged, Robust, Type Approved Multiplexer with built-in NMEA 2000 connectivity, high-speed Ethernet streaming of data, flexible configuration, auto-switching and sentence level filtering.

Managing and routing your NMEA data is straight forward, hassle free using the PRO-NDC-1E2K

Features:

• Auto-switching between inputs to allow for a primary, secondary, tertiary priority input.
• Configurable baud rates to allow 38400 and 4800 baud devices to operate through the same multiplexer.
• Sentence filtering to block unwanted sentences from specific outputs helps to limit bandwidth consumption.
• Easy to configure using the web based UI, no need to manually enter and edit strings of text.
• RINA type approved device means the multiplexer is fit for leisure, commercial and class / type installations.
• Multiple LED’s allow for ‘quick glance’ diagnostics to ensure everything is operating correctly.
• Certified NMEA 2000 device connectivity allows for conversion and output of data onto NMEA 2000 network.
• Bi-directional conversion to and from N2K Network allows for seamless integration between legacy and new equipment.
• NMEA 0183 data streaming over Ethernet enables connectivity to existing Ethernet devices and systems.
• NMEA 2000 data streaming over Ethernet.
• 5 OPTO-Isolated NMEA 0183 inputs and 2 ISO-Drive NMEA 0183 outputs provide protection for all connected instruments.
• Type-approved (RINA).
• NMEA 0183 Ethernet streaming
• NMEA 2000 Ethernet streaming
• NMEA 2000 output via M12
• 5x Configurable Opto-isolated NMEA 0183 inputs.
• 2x Configurable ISO-Drive isolated NMEA 0183 outputs.
• 1x Bi-directional, configurable, isolated serial port.
• Automatic baud rate matching on inputs.
• Advanced data filtering / routing.
• Free firmware updates making the device future-proof.
• Diagnostic LEDs on all inputs and outputs.
• Bi-colour status LED.
• Panel mountable.
• Stainless Steel housing for added durability
• Quick and easy to install
• Configuration using standard web browser, no PC operating system compatibility issues
• Advanced features solve NMEA 0183 data routing problems
• Fully isolated with ISO-Drive technology for peace of mind
• Easy firmware updates make the device future-proof
• Type Approved (RINA)

Technical Specifications:

Power Supply

• Input supply voltage - 9 to 35 V DC
• Input supply current - 150mA max @ 12V DC (all outputs @ full drive into 100 ohm loads)
• Input protection - Continuous reverse polarity, transient overvoltage and ESD protection
• Power indicator - LED, Blue – indicates unit is functioning correctly
• Input Supply connector - Pluggable 2-way screw terminal, 5.08mm pitch (12 to 30 AWG)

NMEA 0183 Port – Listener & Talker

• Number of Listener / Input Ports - 5 isolated NMEA 0183 Listeners
• Number of Talker / Output Ports - 2 isolated NMEA 0183 Talkers
• Compatibility - Fully NMEA 0183, RS422 & RS232 compatible. RS485 Listener compatible
• Speed / baud rate - 4800 to 38400 bps
• Talker Output Voltage Drive - >= 2.2V (differential) into 100 ohm
• Talker Output Current Drive - 20 mA maximum per output
• Talker Output Protection - Short circuit and ESD
• Talker Data Indicator - LED, Orange (Flashes with data rate)
• Listener Input Voltage Tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
• Listener Input Protection - Current limited, overdrive protection to 40 VDC and ESD protection
• Listener Data Indicator - LED, Green (Flashes with data rate)
• Connectors - Pluggable 2/3 way screw terminals, 5.08mm pitch (12 to 30 AWG)

Serial Port

• Compatibility - RS422 & RS232 compatible. RS485 Listener compatible
• Speed / baud rate - 115200 bps
• Output voltage drive - >= 2.1V (differential) into 100 ohm
• Output current drive - 20 mA max.
• Output protection - Short circuit and ESD
• Input voltage tolerance - -15 V to +15 V continuous, -35 V to +35 V short term (< 1 second)
• Input protection - Current limited, overdrive protection to 40 VDC and ESD protection
• Data Indicators - LED’s: Green = Receive, Orange = Transmit
• Connectors - Pluggable 3-way screw terminals, 5.08mm pitch (12 to 30 AWG)

Ethernet Port

• Host interface - 10/100BaseT, automatic polarity detection
• Supported protocols - TCP/IP for configuration and firmware updating, TCP/IP and UDP for NMEA 0183 comms
• Connector - RJ45
• Indicators - Green – Link, Yellow – 100 Mbps

NMEA 2000 Port

• Compatibility - NMEA 2000 Certification Pending
• Speed / baud rate - 250 kbps
• Connectivity - M12 male (A-coded) connector

Isolation

• NMEA 0183 Listener - Uses IsoDriveTM, Hi-Pot tested to 1000V
• NMEA 0183 Talker - Uses IsoDriveTM, Hi-Pot tested to 1000V
• Serial Port - Uses IsoDriveTM, Hi-Pot tested to 1000V
• Ethernet Port - 2kv for 60s
• NMEA 2000 Port - OPTO-Isolated, Hi-Pot tested to 1000V

Mechanical

• Housing Material - 316 Stainless Steel
• Dimensions - 139mm (W) x 98mm (H) x 26mm (D)
• Weight - 360g
• Mounting - Bulkhead mount or DIN rail mount (DIN kit 1)

Approvals and Certifications

• EMC - IEC 60945:2002-08, DNVGL-CG-0339:2019 & IACS UR E10 Rev7
• Compass Safe Distance - 300mm
• Type Approval Certificate - RINA
• Operating Temperature - -25 to +70°C
• Storage Temperature - -40 to +85°C
• Relative Humidity (RH) - 95% @ 55°C
• Environmental Protection - IP40
• Guarantee - 5 Years when registered

Specifications:

• Cable Length (Feet): N/A
• Data Interface: NMEA 0183
• Box Dimensions: 2"H x 6"W x 10"L WT: 1.05 lbs
• UPC: 5060998710751
